| Manufacturer | Model | Start Year | End Year |
|---|---|---|---|
| Ford | Transit | 2024 |

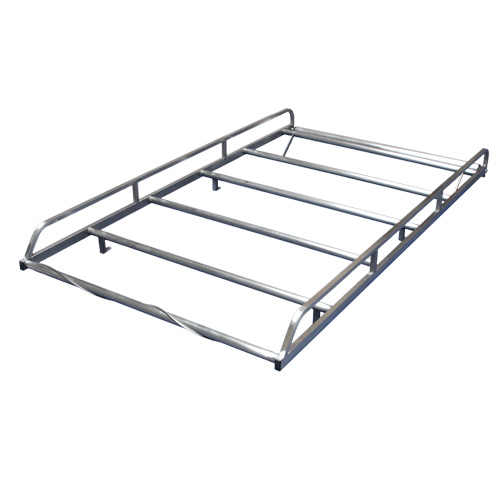

Roof rack Ford Transit RVS
Our high-strength stainless steel roof racks are custom designed for each type of van. This allows us to guarantee a perfect fit for your Ford Transit. The roof rack offers extra loading space and the possibility of transporting long materials. This saves difficult loading in the cargo bay and saves travel costs by reducing the need to drive up and down. The sides of the stainless steel roof rack have an open frame, making it easy to secure the load. We also supply ladder clamps that allow you to secure a ladder in no time. A safe thing!
Stainless steel roof racks
The stainless steel roof rack is extremely strong, very safe and easily carries the heaviest materials. The wind guide on the front crossbar reduces wind noise. The loading roller can be found on the back of the RVS roof rack. It helps you load materials and protects the back of the Ford Transit. Do you have a tailgate on the commercial vehicle? Then the loading roller is not required.
Advantages of the stainless steel roof rack
- Perfect fit for the Ford Transit.
- Includes wind guide.
- Includes load roller, provided your Ford Transit has rear doors.
- Mounting on original mounting points.
- Pre-assembled.
- Simple mounting.
- Robust and ergonomic.
Mounting the Roof Rack
The stainless steel roof rack is delivered pre-assembled, making it sturdy and easy to install. Remove the black sealing caps from the mounting points on the roof, place the roof rack on the roof, and screw it securely to the Ford Transit. Of course, we provide all the necessary mounting materials.
Prefer to outsource the installation? No problem at all. We're happy to install the roof rack in our workshop in Veghel. Simply make an appointment, and we'll take care of the rest.
This product fits the following vehicles:
| Merk | Type | Vanaf | Tot |
|---|---|---|---|
| Volkswagen | Crafter | 2006 | 2017 |
| VEHICLE DIMENSIONS |
|---|
| Transit 2024+ (FWD) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L2H2 | L2H3 | L3H2 | L3H3 | ||||||||||||||
| A | Wheelbase (mm) | 3300 | 3300 | 3750 | 3750 | ||||||||||||
| B | Length of the overhang (mm) | 1208 | 1208 | 1208 | 1208 | ||||||||||||
| C | Totale length (mm) | 5531 | 5531 | 5981 | 5981 | ||||||||||||
| D | Cargo hold length (mm) | 3044 | 3044 | 3494 | 3494 | ||||||||||||
| E | Cargo hold width (mm) | 1784 | 1784 | 1784 | 1784 | ||||||||||||
| F | Width between wheel arches (mm) | 1392 | 1392 | 1392 | 1392 | ||||||||||||
| G | Cargo hold height (mm) | 1886 | 2125 | 1886 | 2125 | ||||||||||||
| H | Vehicle height (mm) | 2490 | 2781 | 2541 | 2780 | ||||||||||||
| Transit 2024+ (RWD/AWD) | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L2H2 | L2H3 | L3H2 | L3H3 | L4H3 | L4H3 TW | ||||||||||||||
| A | Wheelbase (mm) | 3300 | 3300 | 3750 | 3750 | 3750 | 3750 | ||||||||||||
| B | Length of the overhang (mm) | 1208 | 1208 | 1208 | 1208 | 1931 | 1931 | ||||||||||||
| C | Totale length (mm) | 5531 | 5531 | 5981 | 5981 | 6704 | 6704 | ||||||||||||
| D | Cargo hold length (mm) | 3044 | 3044 | 3494 | 3494 | 4217 | 4217 | ||||||||||||
| E | Cargo hold width (mm) | 1784 | 1784 | 1784 | 1784 | 1784 | 1784 | ||||||||||||
| F | Width between wheel arches (mm) | 1392 | 1392 | 1392 | 1392 | 1392 | 1154 | ||||||||||||
| G | Cargo hold height (mm) | 1786 | 2025 | 1786 | 2025 | 2025 | 2025 | ||||||||||||
| H | Vehicle height (mm) | 2542 | 2781 | 2543 | 2782 | 2790 | 2790 | ||||||||||||
FWD - Front wheel drive
RWD - Rear wheel drive
AWD - All wheel drive
TW - Twin wheel
